Softub Spas HydroMate Power Pack – Retro Fit – Special Introductory Offer
$995.00
Product Features:
-
Self Contained Heat Recovery Power Pack System – Designed for Softub Spas HydroMate Replacement PackageThis System Uses Hydro Thermix Thermal Wrap Heat Jacket which captures the waste heat generated by the pump motor and puts it in the water where it belongs!Complete System – Pre-Assembled – Pre-Plumbed and Wired – In A Box – ready for final hookup
16 people are viewing this right now
100% Guaranteed Safe & Secure Checkout
Description
Specifications: Complete Control System, Pre-assembled, Pre-plumbed, Pre-wired – In A Box:
This package Includes the following features and components:
- Manufacturer: Hydro Thermix, Balboa & Aqua Flo
- Controller Model: HJ-81

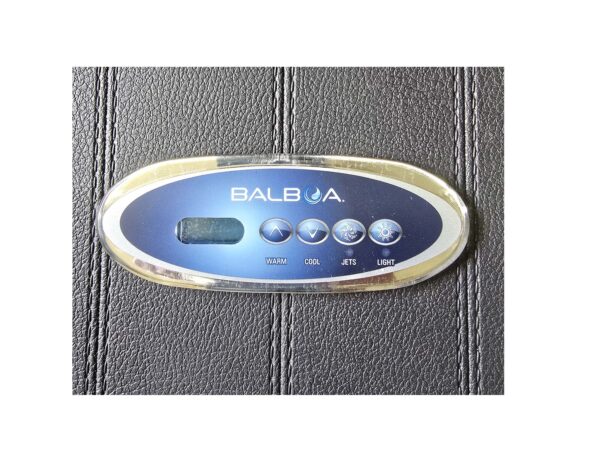

- Key Pad & Overlay: VL240
- Pump & Motor: Aqua Flo, 1hp (1.5hp SPL), Single Speed, 12 Amps, 110-120 volts, pre-plumbed and wired to controller
- System Type: Heat Recovery (Thermal Transfer Heat Jacket)
- Thermal Wrap Model 52B Thermal Wrap Heat Transfer Jacket – pre-installed on pump motor
- Voltage: 110v-120v Only
- HZ Rating: 60Hz
- Enclosure: Resin – Color: Graphite
- Power Cord Includes a 15amp GFCI
- Power Cord Length: 14′ pre-installed
- Light Cord: 6′ pre-installed
- Water Pro Ozone Generator – pre-installed and wired to controller

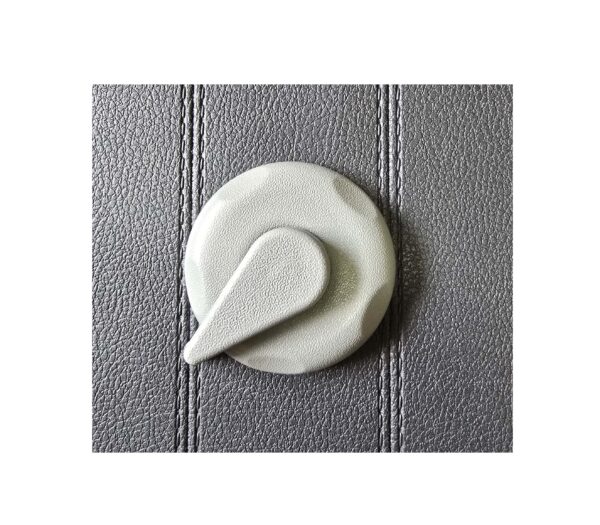

- Air Control Valve – pre-installed and plumbed to air line
- Plumbing between Power Pack and Tub included if required – please specify
- Weight: 59 lbs.
- Dimensions: 27″ Height x 21″ Width x 21″ Depth (+ 4.5″ exposed plumbing connections)
Can Replace the Following Control System Models:
- TDI / Tridelta / Tecmark Thermal Transfer Systems
- Len Gordon HT-1000Y2K
- Spa Builders LX-05 systems
- Gecko IN.YJ2
- Vita Spa – Duet
- Softub HydroMate
- Other Soft Sided Tubs
Product Features:
- No Need For An Electric Flow Through Heater
- Uses Heat Recovery (Hydro Thermix Thermal Wrap Heat Transfer Jacket)
- Harnesses Heat Created by the Pump Motor using Thermal Wrap Heat Jacket
- Controls (1) Single Speed Pump & Ozonator
- Can Control Spa Light – wiring and light socket included.
- 1 Year Warranty
- Includes Dry Well/Thermowell and Heat Sensors – pre-installed
Note: Other pump configurations available upon request – please contact us to discuss your needs.
Additional Information
Additional Information
| Weight | 59 lbs |
|---|---|
| Dimensions | 24 × 24 × 30 in |
