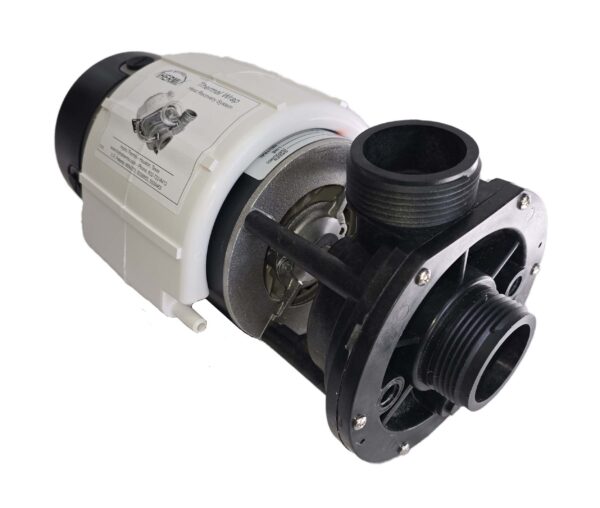

Softub Pump: 1.5HP (SPL) 12.4 Amps, 1 Speed w/ Thermal Wrap “No Base Motor”
New Design Offering Improved Performance and Structural Integrity:
This System Includes:
Motor With out Base & Pump with Pre-installed Heat Recovery Jacket For Softub equipped with an Aqua Flo FMCP Series Pump
Description
Softub Pump Replacement: 1.5HP (SPL) 12 Amps, Single (1) Speed with Thermal Wrap Heater Jacket by Hydro Thermix – No Base Motor
This system is designed to replace your existing coil wrapped motor with our patented “Thermal Wrap” Heat Jacket – for less money!
This System/Listing Includes:
Motor & Pump with Pre-installed Thermal Wrap
Descriptions:
Motor:
Manufacture: Century / A.O. Smith / Single Speed Motor – No Base
Horse Power: 1 Service Factor 1.0 (1.5hp SPL)
Volts: 115
Amps: 12.4
RPM: 3450
Frame: 48Y
HZ: 60
Stainless Shaft
Thermally Protected
Pump: (pre-installed on motor)
Mfg: Aqua-Flo
P/N: 91040810 – FMCP Series
1 HP (1.5HP SPL)
1 1/2″ Center Suction x Center Discharge – pump threads fit your existing 1.5″ pump disconnects/unions.
32″) 3/8″ ID Tubing (for making tubing connections between the 2 ports on Thermal Wrap to your existing coil/hose ports in your plumbing)
4) Tubing Clamps
More about the Thermal Wrap – Heat Transfer System:
Tub water circulates through a serpentine path in the Thermal Wrap,
collecting the heat generated by the pump/motor and recycles that heat to the tub water – were it belongs!
This patented heating system for hot tubs/spas and Whirlpool Baths,
captures and recycles the waste heat “energy” produced by the pump/motor and delivers that heat to the hot tub or bath water.
The Thermal Wrap system will heat and maintain water temperature.
The system allows the motor to run cooler; increasing the motors longevity and efficiency.
There are no moving parts and nothing to wear out. Made in the USA!
Efficient:
– Patented design, over 1,000,000 in use
– Special thermal conductive inner heat transfer liner
– Models available for most 48 frame thru bolt spa/hot tub and jetted bathtub pumps
Economical:
– Maintenance free – no moving parts to wear out
– Helps keep motor cooler – increases motor longevity and efficiency
– Cost less than electric heaters
– No additional electrical circuits required for installation
Safe:
– Manufactured of non-conductive materials
– Non electrical
– Self draining design (required for whirlpool bath application)
Additional Information
| Weight | 21 lbs |
|---|---|
| Dimensions | 18 × 10 × 10 in |
