Softub Pump: 1.5HP (SPL), 1 Speed W/Thermal Wrap (replaces XP2e) No Base Motor
New Design Offering Improved Performance and Structural Integrity:
This System Includes:
Motor & Pump with Pre-installed Heat Recovery Jacket For Softub equipped with an Aqua Flo XP2e Series Pump
Description

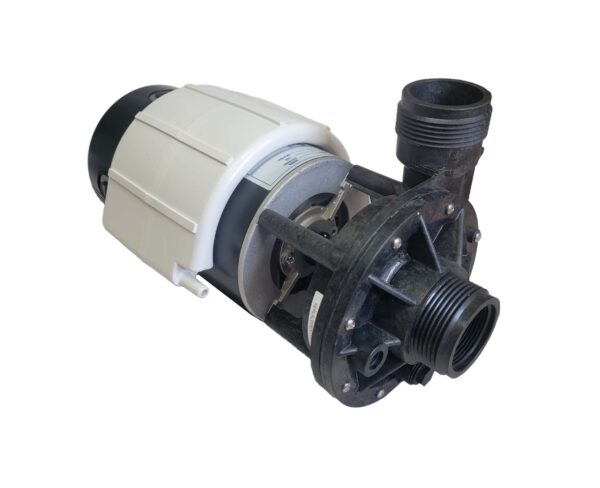

Softub Pump: 1.5HP (SPL) 12 Amps, 1 Speed with Thermal Wrap (replaces XP2e pump)
With No Base Motor
This system is designed to replace your existing coil wrapped motor with our patented “Thermal Wrap” Heat Jacket – for less money!
This System/Listing Includes:
Motor & Pump with Pre-installed Thermal Wrap
Descriptions:
Motor:
Manufacture: Century / A.O. Smith / Single Speed Motor – No Base
Horse Power: 1 Service Factor 1.0 (1.5hp SPL)
Volts: 115
Amps: 12.4
RPM: 3450
Frame: 48Y
HZ: 60
Stainless Shaft
Thermally Protected
Pump: (pre-installed on motor)
Manufacture: Aqua-Flo
P/N: 91693601-000 – FMHP Series
1 HP (1.5HP SPL)
1 1/2″ Center Suction x Side Discharge – pump threads fit 1.5″ pump disconnects/unions.

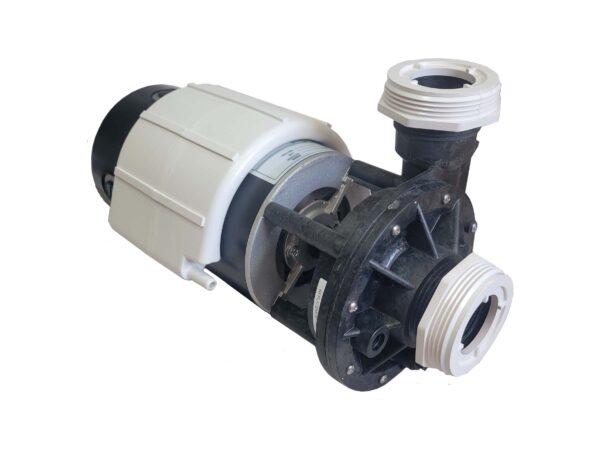

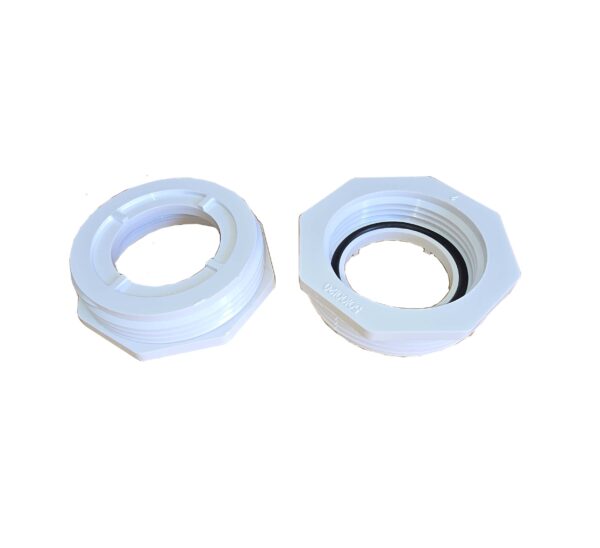

2) Pump Thread Adaptors – 1.5″ Female x 2″ Male (These adaptors are included and necessary for this pump 1.5″ threads to fit Softubs supplied with an XP2 pump with 2″ pump threads, unions/disconnects) see adaptors installed on pump threads in second picture above.
32″) 3/8″ ID Tubing (for making tubing connections between the 2 ports on Thermal Wrap to your existing coil/hose ports in your plumbing)
4) Tubing Clamps
Additional Information
| Weight | 21 lbs |
|---|---|
| Dimensions | 18 × 10 × 10 in |
